Business Central 29 Table Extensions: From Companion Tables to Zero Joins

When we saw the first release of AL and the extension model back in 2018, and the way table extensions were implemented in SQL Server as separate tables, alarm bells rang. As performance tuning specialists for Business Central and Dynamics NAV, we raised our concerns with Microsoft through the official partner feedback and support channels at the time, highlighting the performance impact we expected to see as customers added more extensions and their databases grew.

Eight years later, Microsoft has addressed it. As the saying goes, better late than never, and we welcome this very important architectural change. In Business Central 29, table extension fields are finally stored in the base table itself. Let's take a closer look at how we got here, and what each step has meant for performance.

1. A Quick History: How NAV Did It

In the classic Dynamics NAV days, adding fields to a table meant opening it in the Object Designer and adding them. On SQL Server there was simply one table: add five fields to the Customer table and the Customer table got five more columns. It was fast and simple, but it was also one of the reasons NAV solutions became so hard to upgrade, because customisations were woven directly into Microsoft's objects.

When Microsoft introduced the AL extension model, it decided extension fields had to live somewhere separate, so that apps could be installed, upgraded and removed without touching the base objects. That decision was right for the development model. The way it was physically implemented in SQL Server is where the performance story begins.

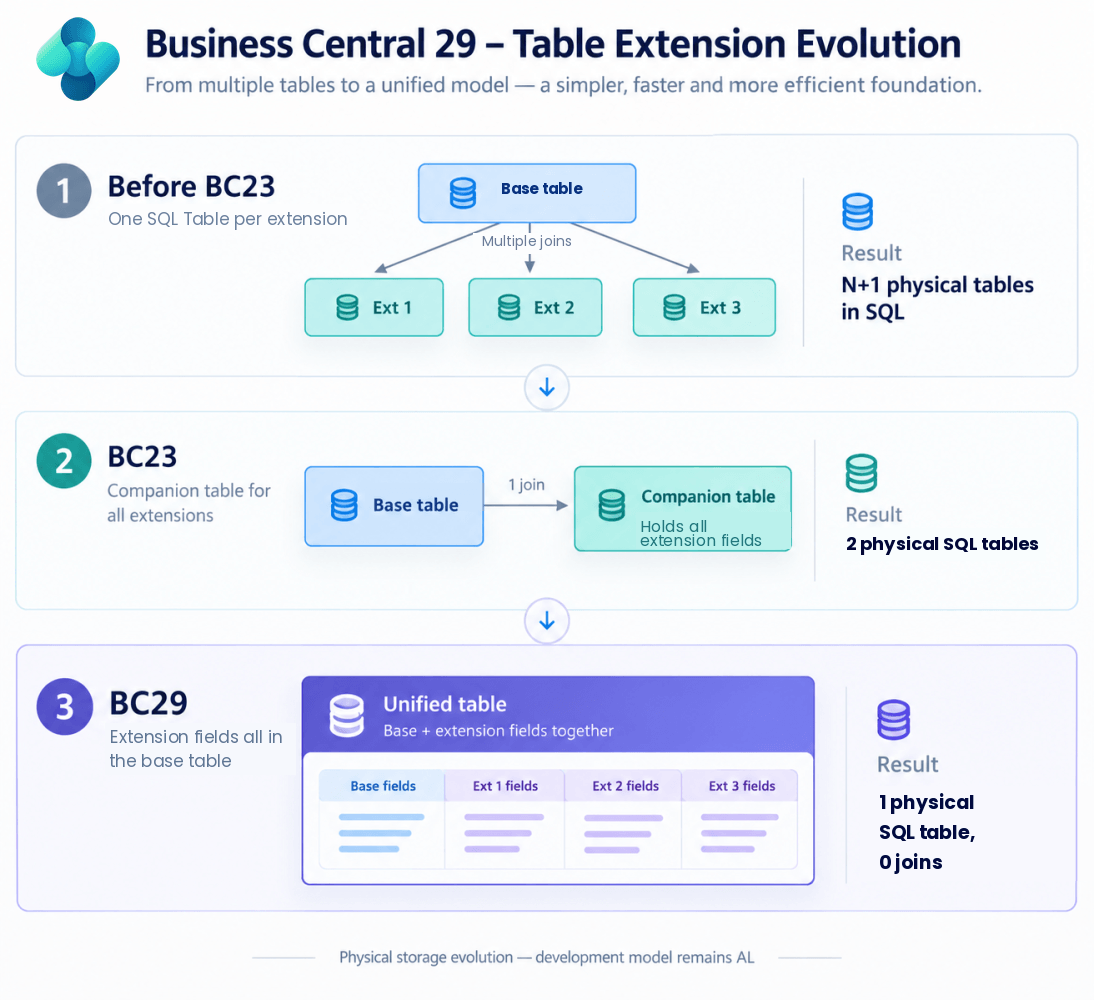

Business Central 29 table extension evolution: before BC23 one SQL table per extension with multiple joins, BC23 one companion table with one join, BC29 one unified table with zero joins
How table extension storage in SQL Server has evolved: N+1 tables before BC23, two tables in BC23, and one table with zero joins in BC29. The development model remains AL throughout.

2. Stage 1 (up to BC22): One Companion Table per Extension

From the first Business Central releases, every app that extended a table got its own companion table in SQL Server. Extend the Customer table from three apps and you had four physical tables: the base table plus one per app, each holding the new fields plus a copy of the parent table's primary key, and each with exactly one row for every customer record. On a heavily customised system this leads to an explosion in the number of SQL tables and a steadily growing database.

To present the full record, the platform had to join the base table to every one of those companion tables. On busy, heavily extended tables such as Sales Header (36), Sales Line (37), Item Ledger Entry or G/L Entry, it was common to see five, six, seven or more apps involved, including Microsoft's own apps. That meant joins across eight or more tables for what the user saw as a single record.

The hidden cost on every write

Reads were only half the problem, and the half that gets talked about. Every write was multiplied too. Because each companion table holds a matching row for every base record, inserting one Sales Line with seven extending apps meant up to eight INSERT statements, all inside the same transaction. The same applied to MODIFY and DELETE. Every one of those statements takes locks, writes to the transaction log and maintains its own indexes, so posting routines that create thousands of ledger entries paid that price thousands of times over, and held locks for longer while doing it. Longer-held locks on more tables mean more blocking and a bigger surface for deadlocks.

Microsoft's first mitigation: SetLoadFields

Microsoft's answer to the read side was partial records (SetLoadFields), which let developers specify only the fields they need. If code didn't touch any field from a particular app, that app's companion table could be left out of the join. It helped where developers used it well, but in practice many code paths and most pages need the full record, and predicting which fields can safely be excluded is hard. It also did nothing for the cost of writes.

3. Stage 2 (BC23): One Consolidated Companion Table

With Business Central 23 (2023 release wave 2), Microsoft addressed this design flaw and consolidated the separate companion tables. All extension fields from all apps extending a given table were moved into a single companion table. However many apps extend Sales Line, there are now only two physical tables, so a full read is at most one join, and every insert, modify or delete is at most two statements instead of N+1.

For heavily extended customers, this was a significant and very visible improvement.

Real-world benchmark: before and after BC23

At SQL Mantra Tools we benchmarked the effect of this consolidation on a live customer site that upgraded from BC21 to BC25, using our Performance Insights for Business Central product. The daily pattern of slow queries stayed the same, which is what you would expect since the business was doing the same work, but the scale of that pattern dropped considerably. The time-series analysis shows it clearly.

Business Central Slow Query Time Series Analysis from Performance Insights showing total execution time dropping sharply after a live site upgraded from BC21 to BC25
Slow Query Analysis — Time Series from Performance Insights. Same daily workload pattern, but a much smaller scale of slow queries after the upgrade from BC21 to BC25 (circled).

Working from the Performance Insights data, the system became 5.4 times faster. That is a typical figure for this change; the exact gain varies from site to site depending mainly on how many extensions are involved. The full results and charts are in point #13 of our article Top tips to improve Business Central performance.

What BC23 still didn't solve

Two problems remained. There was still one join and a second write for every record. And, crucially for performance design, keys still could not combine base-table fields with extension fields, because they lived in different physical tables.

This matters more than it sounds. A typical example: your app adds fields to Cust. Ledger Entry and you filter on Customer No. together with your own field. You cannot add Customer No. to a key in your table extension, because it isn't your field. Many partners worked around this by adding a duplicate "Customer No." field to their extension and keeping it in sync in code, purely to get an index that performs. That is more code, more data and more chances for the two copies to drift apart.

4. Stage 3 (BC29): Extension Fields Live in the Base Table

In Business Central 29, extension fields are physically stored as columns of the base table. The development model doesn't change: you still write table extensions in AL, apps remain separately installable, and nothing changes in how you deploy. What changes is the storage underneath, and the benefits are substantial.

No joins on read

One table means no join at all, whether the code loads one field or all of them. Queries are simpler, execution plans are more predictable, and SQL Server reads fewer pages to return the same data.

One statement per insert, modify and delete

This is the benefit that gets the least attention, and in our experience it is one of the biggest. Every write is now a single SQL statement against a single table. Compared with BC23 that removes a whole extra INSERT, UPDATE or DELETE for every record touched; compared with the original design it removes up to N of them. Fewer statements mean shorter transactions, fewer locks, less transaction log activity and less index maintenance, which translates directly into faster posting, faster batch jobs and less blocking between users.

Significant storage savings

The companion table had exactly the same number of rows as its parent. Each of those rows carried its own copy of the primary key, its own row overhead and its own clustered index. On a small table that is trivial. On the very large tables many of our customers run, such as G/L Entry, Value Entry, Item Ledger Entry or Sales Line with tens or hundreds of millions of rows, that duplication adds up to many gigabytes of data and index space that served no business purpose.

Removing it shrinks the database, reduces backup and restore times, lowers storage costs, and means more of the useful data fits in SQL Server's memory (buffer pool), which itself improves performance. For Business Central SaaS customers, it also helps with database capacity limits.

Keys and SIFT indexes that combine base and extension fields

With everything in one table, you can now define keys and SIFT indexes in a table extension that mix standard fields with your own. For example, in Cust. Ledger Entry, you can simply create a key on Customer No. plus your own field. The duplicate-field workaround is no longer needed, and indexes can finally be designed around how the data is actually filtered. In the demonstration we reviewed, this requires the new AL runtime that ships with platform 29.

5. A Word of Caution: The Designer Still Creates Clutter

One thing BC29 does not fix is extension sprawl. Every time someone uses the in-client Designer to add fields or change a page, it creates a separate extension. Over time that leaves a customer with a clutter of small extensions, which become hard to manage and lead to code-management and dependency problems. Each extension also adds to the number of columns on the tables it touches, bringing the SQL Server limits mentioned below closer.

Our advice is clear: consolidate customer-specific changes into a single "Customisation" extension, adding fields properly using VS Code rather than the in-client Designer.

6. At a Glance

BC14 – BC22BC23 – BC28BC29 onwards
Physical tables in SQLBase table + one per extending app (N+1)Base table + one companion table (2)One table
Joins to read a full recordUp to N10
SQL statements per insert / modify / deleteUp to N+121
Duplicate rows storedOne extra row per record, per extending appOne extra row per recordNone
Keys and SIFT mixing base and extension fieldsNot possibleNot possibleSupported

7. Things to Be Aware Of

No architecture change is free, though for most customers these points are more theoretical than practical.

  • Uninstalling an app and deleting its data used to mean dropping its companion table. Now its columns must be dropped from the shared base table, so on very large tables, plan this for a maintenance window.
  • Capacity. Because all extension fields now share the base table's row, every app on that table draws from one budget. That budget is about 1,000 fields and just under 8,000 bytes per record, once Business Central's system fields and SQL Server's row overhead are taken out of SQL Server's 1,024-column and 8,060-byte limits. Before BC29, extensions had their own budget in the companion table. If a limit is ever reached, it will be the record size rather than the field count, but standard tables leave several thousand bytes free, and officially, Microsoft's supported maximum of 500 fields per table is the sensible design ceiling anyway. In our view, a table needing hundreds of extra fields is a design issue worth revisiting regardless.

Conclusion

This is one of the most important architectural changes since Business Central moved to AL, and it took a great deal of engineering to make it happen this late in the product's life. Credit to Microsoft for doing it. For customers with large databases and heavily extended tables, BC29 brings faster reads, noticeably cheaper writes, smaller databases and the freedom to design proper indexes across base and extension fields.

See What BC29 Means for Your Own System

If you want to see what this change means for your own system, or to find out where your Business Central performance is really being lost, SQL Mantra Tools can show you the exact Business Central users, AL code and SQL queries behind every slowdown, blocking and deadlock incident.

Find out more about Performance Insights for Business Central (P014) or get in touch to discuss a performance health check.

Frequently asked questions

How are table extension fields stored in Business Central 29?

In Business Central 29 (BC29), table extension fields are physically stored as columns of the base table in SQL Server, rather than in separate companion tables. The development model does not change: developers still write table extensions in AL, apps remain separately installable and deployment is unchanged. Only the storage underneath changes, which removes the join needed to read a full record, reduces every insert, modify and delete to a single SQL statement, saves storage by removing duplicate rows, and allows keys and SIFT indexes that combine base and extension fields.

What changed for table extensions in Business Central 23 (BC23)?

Up to BC22, every app that extended a table had its own companion table in SQL Server, so a table extended by N apps meant N+1 physical tables, up to N joins to read a full record and up to N+1 SQL statements for every insert, modify or delete. Business Central 23 (2023 release wave 2) consolidated all extension fields from all apps into a single companion table per base table, so a full read needs at most one join and every write at most two statements. On a live customer site upgraded from BC21 to BC25, SQL Mantra Tools measured the system becoming 5.4 times faster using Performance Insights for Business Central; the exact gain varies mainly with the number of extensions involved.

Can keys in a Business Central table extension combine base table fields and extension fields?

From Business Central 29, yes. Because extension fields are now stored in the base table itself, keys and SIFT indexes defined in a table extension can mix standard fields with your own fields, for example a key on Customer No. plus an extension field in Cust. Ledger Entry. Before BC29 this was not possible because the fields lived in different physical tables, and many partners worked around it by duplicating a standard field such as Customer No. into their extension and keeping it in sync in code. This requires the new AL runtime that ships with platform 29.

Are there any downsides to storing extension fields in the base table in BC29?

For most customers the trade-offs are more theoretical than practical. Uninstalling an app and deleting its data now means dropping its columns from the shared base table rather than dropping a companion table, so on very large tables this should be planned for a maintenance window. All extensions on a table also share one row budget of roughly 1,000 fields and just under 8,000 bytes per record, derived from SQL Server's 1,024-column and 8,060-byte limits after Business Central's system fields and row overhead. Microsoft's supported maximum of 500 fields per table remains the sensible design ceiling. BC29 also does not fix extension sprawl from the in-client Designer, so customer-specific changes should be consolidated into a single extension developed in VS Code.
